8-Stage TDI X-ray Line Detector

The DANO T Series is a high-sensitivity X-ray line detector based on an 8-Stage TDI structure.
By accumulating repeated scan signals, it provides clearer images even under low-signal conditions and supports high-resolution inspection based on a 0.2 mm pixel pitch.
It enables more precise visualization of fine foreign objects and internal defects in food, electronics, batteries, and various industrial inspection environments.

Detector Image

Click the image to enlarge.

Mechanical Drawing

Click the drawing to check dimensions in detail.

Model	DANO T256	DANO T410	DANO T620
Feature	8-Stage TDI X-ray Line Detector
Energy Range	30–160 kV
Scintillator	GOS (DRZ-HI, Tungsten Shield)
Active Area (mm)	256.9	411.1	616.7
Pixel Pitch (mm)	0.2
Number of Pixels	1280	2048	3072
TDI Stages	8
A/D Converter	16-bit (ENOB 13.3 bits)
Dynamic Range	52,000+
Scan Speed (m/min)	2–66
IP Code	IPx6
Operating Temperature (°C)	0–40
Storage Temperature (°C)	-10–50
Operating Humidity (%)	30–80
Interface	USB 2.0 / USB 3.0 (Optional)
Power Supply	DC 12 V
Length (mm)	298	453	658
Width (mm)	140
Height (mm)	35
Weight (kg)	2.1	3.4	5
Software	Windows 7 / 10 (x86 / x64), Microsoft Visual C++ SDK
Calibration	Multi-Point 256
Image Format	RAW Image / CAL Image (16-bit TIFF)
Image Packet	Line / Frame

Key Features

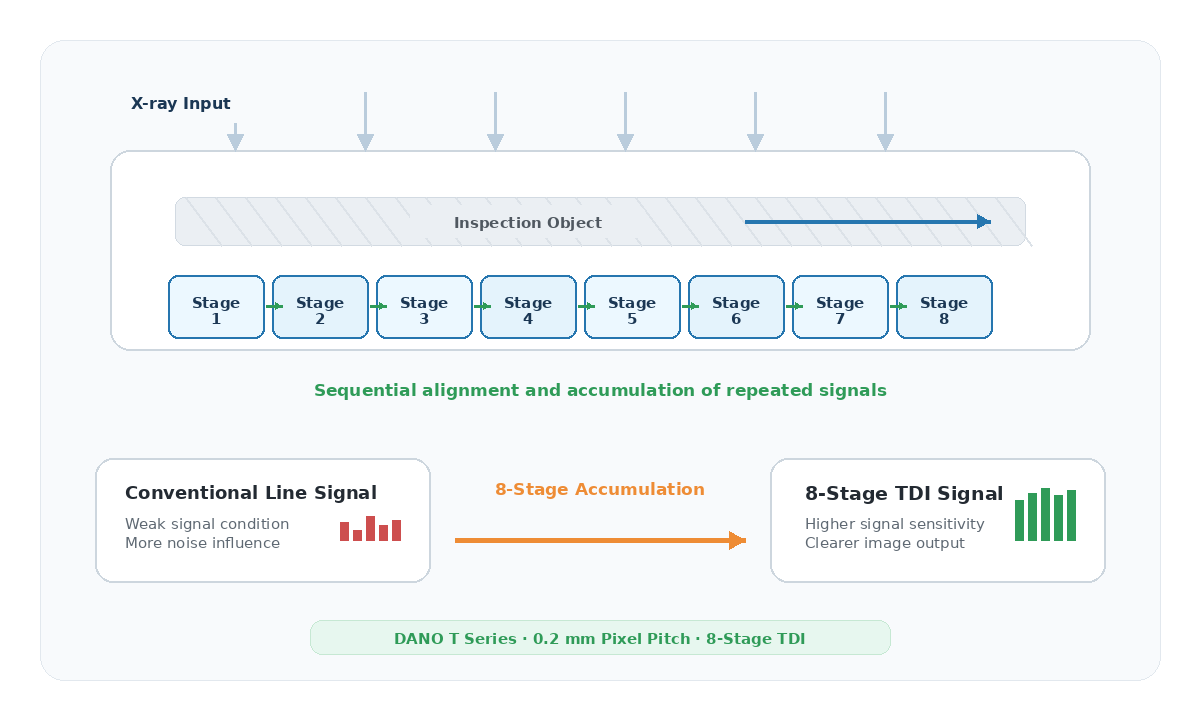

8-Stage TDI Structure
- Provides clearer images even under low-signal conditions. -

By accumulating repeated scan signals through the TDI structure, the DANO T Series increases signal sensitivity and enables more stable visualization of fine internal defects and foreign objects.

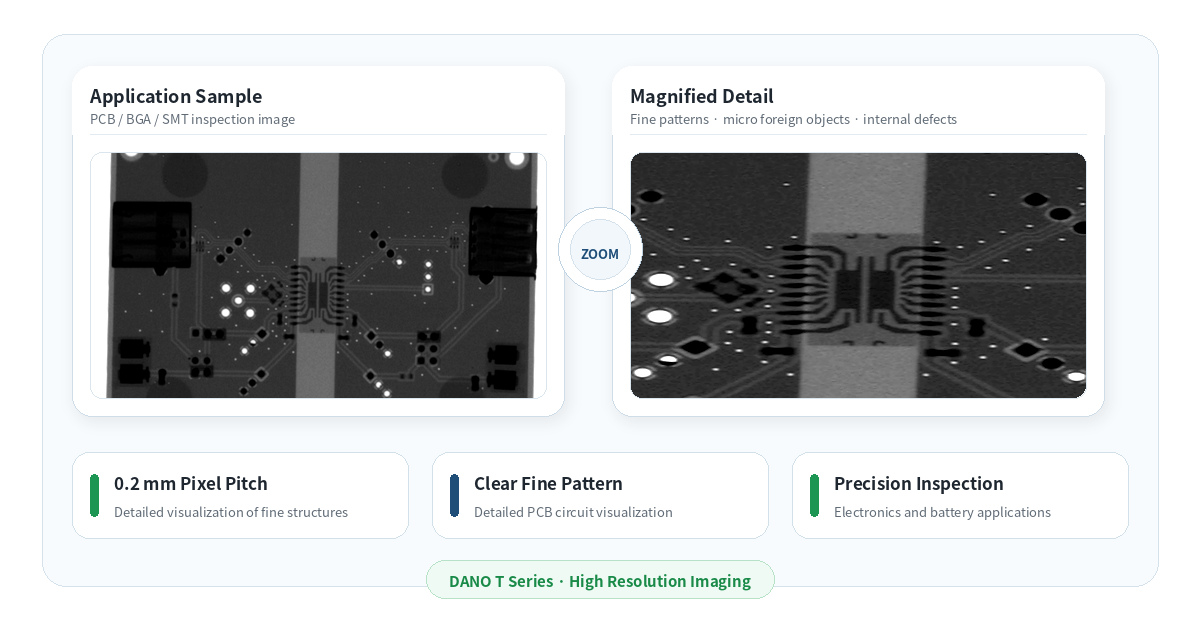

0.2 mm High-Resolution Pixel Pitch
- Supports clearer visualization of fine structures and small foreign objects. -

The DANO T Series is based on a 0.2 mm pixel pitch and is suitable for precision inspection environments where fine structures, small foreign objects, and internal defects need to be visualized clearly. It can be applied to electronics, batteries, small packaged products, and various high-resolution industrial inspection applications.

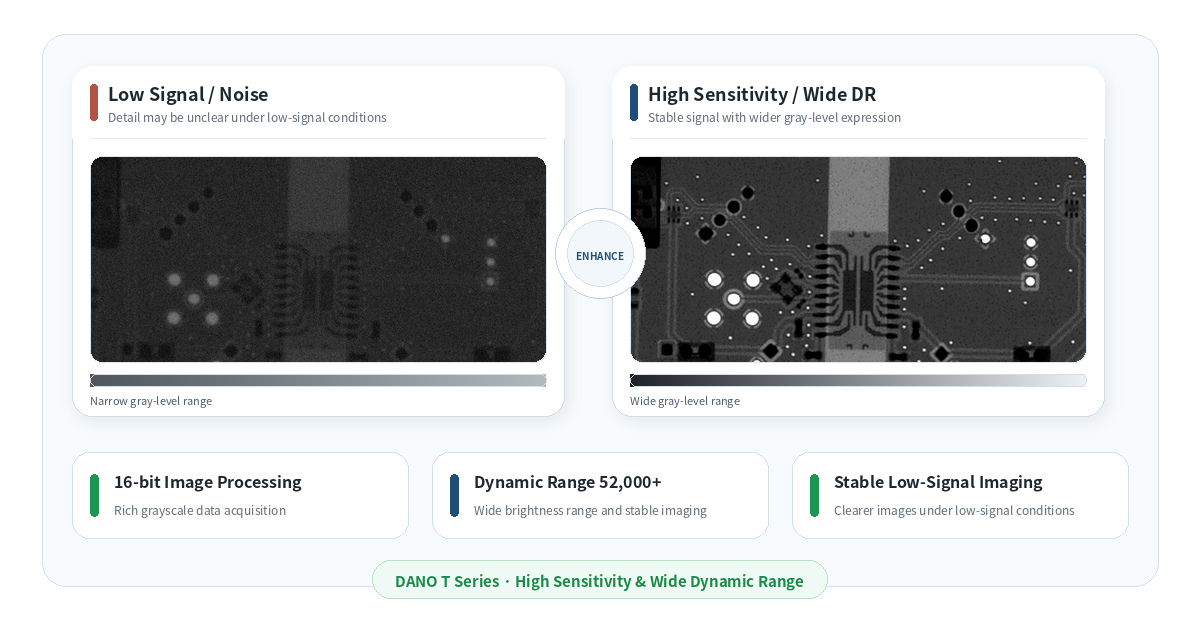

High Sensitivity & Wide Dynamic Range
- Provides stable image quality even under low-signal conditions. -

Based on 16-bit image processing and a 52,000+ dynamic range, the DANO T Series reduces the effect of noise and provides stable grayscale reproduction and clear image quality across targets with different density characteristics.
Typical Inspection Fields
- Food, electronics, batteries, and precision inspection. -

The DANO T Series can be applied to food inspection, electronics inspection, battery inspection, and precision industrial inspection environments where high-resolution X-ray images are required. With its 8-Stage TDI structure and 0.2 mm pixel pitch, it supports more stable visualization of fine foreign objects, internal defects, and precision component structures.
SDK Integration Support
- Can be stably integrated into customer X-ray inspection systems. -

A standard SDK is provided so that the DANO T Series can be easily integrated into customer inspection software and equipment platforms.
